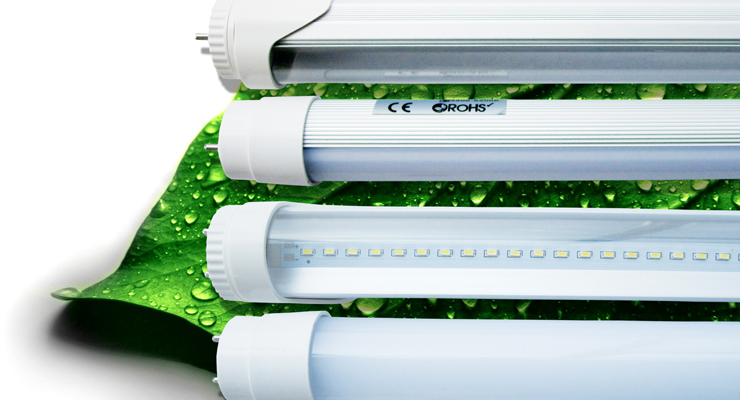

LED T8 Round Beam(New)

NOA-T8-LT-060

Features & Application
Shell adopt aluminum alloy, combined with PMMA wave and frosted diffuser cover, and the ends adop PC plastics lamp hold.
Adopt several SMD LED lamps, equipped with internal LED special driver, lifespan is more than 40,000h.
Remove ballast and starter, small modification is needed for re-wiring existing fixture. Remove old fluorescent light, replace with LED tube and start up. Widely applied to Hospital, Shopping mall, Supermarket, Museum, School, Computer room, Bank, Subway, Exhibition hall, Hotel, etc.


Technical ParametersLED T8 Round Beam(New)
Model   :   NOA-T8-LT-060
Lamp’s Power   :   10W
Operating Voltage   :   100-240V AC, 50/60Hz
Optimal Operating Humidity   :   10% to 90%
Work Tempurature   :   - 25 ºC to +45 ºC
Power factor   :   > 0.9
Luminous Flux   :   1000 Lm ± 3%
Lifespan (Hours)   :   40,000 Hours
CRI   :   Ra>80
Color Temperture   :   2800K~3200K (Warm white )
4000K~5000K (Natural white )
5500K~6500K ( Cool white )
Use Environment   :   indoor only
PC Cover   :   Milky
Body   :   Aluminum
Dimension   :   ф35*600 mm
Socket   :   Rotate
Approval   :   CE, RoHS
