Technology from Japan

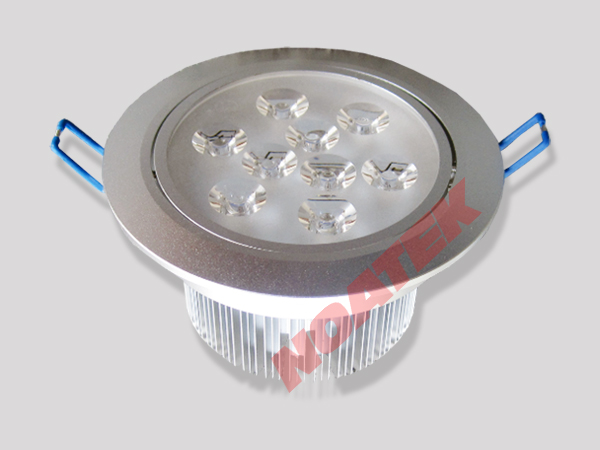

LED Down Light (New Style)

NOA-DL-09W

Features & Application
The product is take COB LED as lighting source, after and effective heat treatment, heat power will give off so as to improve the luminance, decrease the wane of light and successfully in extending life span. Super-quality chemical lens and aluminum alloy shell planting, rapid give off heat, low power, dust-proof and leak-proof electrical.
Technical ParametersLED Down Light (New Style)
Model   :   NOA-DL-09W
Lamp’s Power   :   9W
Operating Voltage   :   220-240V AC, 50/60Hz
Optimal Operating Humidity   :   10% to 90%
Operating Temp   :   - 40 ºC to +55 ºC
Power factor   :   >= 0.9
Luminous Flux   :   700 Lm -770 Lm
Lifespan (Hours)   :   40,000 Hours
CRI   :   Ra >= 80
Color Temperture   :   2800K~3200K (Warm white )
4000K~5000K (Natural white )
5500K~6500K ( Cool white )
Use Environment   :   indoor only
Install Hole (mm)   :   ф 95 mm
Body   :   Aluminum
Weight   :   300 gram
Dimension   :   109 *67 mm
Lens   :   7 Lens
Light Angle   :   60  degrees
